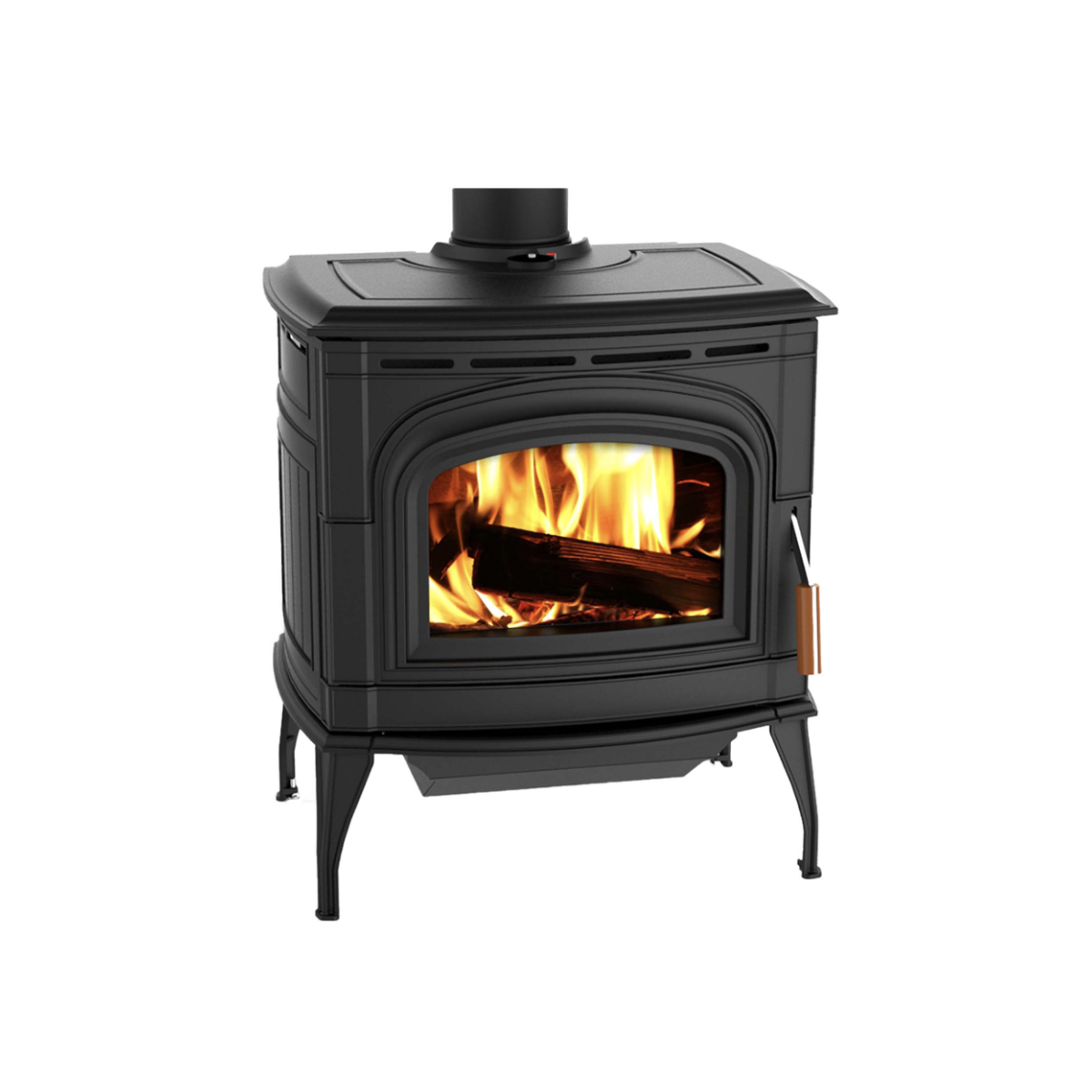

Blaze King Ashford 20.2 Wood Stove

The Blaze King Ashford 20.2 Wood Stove combines classic cast-iron styling with catalytic wood-burning technology and thermostat-controlled heat. Its 1.8 cu. ft. firebox makes it more compact than the Ashford 30.2, while still offering long, controlled burns and efficient heating.

Compact Size With Controlled Heat

The Ashford 20.2 delivers up to 32,776 BTU/hour at high output and has a published low output of 11,370 BTU/hour. It is designed to heat approximately 900–1,500 sq. ft., although actual heating performance depends on insulation, climate, floor plan, and the home’s heat loss.

One important point is that a smaller firebox does not automatically mean a lower minimum heat output. The Ashford 20.2’s published low output is slightly higher than the Ashford 30.2’s, so buyers should choose based on actual heating requirements rather than size alone.

Up to 20-Hour Burn Time

The Ashford 20.2 is rated for up to 20 hours on low, with an average heating time of around 8–11 hours. The 20-hour figure represents low-output endurance, not continuous operation at maximum heat.

Its 1.8 cu. ft. firebox provides less fuel capacity than the Ashford 30.2, making the 20.2 better suited to homes where a compact stove and shorter burn cycles are preferred.

The manufacturer also lists a maximum log length of 16 inches, with 15 inches recommended. The current manual gives a tested fuel length of approximately 13 inches, so it is worth checking your normal firewood size before buying.

Catalytic Technology and 6-Inch Venting

The Ashford 20.2 uses a catalytic combustion system to burn smoke and gases more cleanly while allowing controlled low-temperature operation. Its mechanical thermostat regulates heat without requiring electricity.

A 6-inch flue is required. Chimney design is important because insufficient draft can affect heat output, smoke-free reloading and catalyst performance at lower settings. An existing 6-inch chimney should therefore be checked against the current installation requirements rather than assumed to be suitable.

For masonry chimneys, the manufacturer recommends an insulated stainless-steel liner. Proper chimney height, routing, and draft can have a major effect on how well the stove performs.

Elegant Cast-Iron Design

The Ashford 20.2 is designed as a piece of furniture as much as a heating appliance. Its detailed cast-iron exterior is available in finishes such as metallic black, cast gray and chestnut gloss enamel, depending on current availability.

Burled walnut handles, a positive-locking dual-action door latch, and the optional ash-handling system add to its premium appearance and everyday convenience.

The attractive exterior should not be confused with the firebox construction: the stove uses a steel firebox, surrounded by its cast-iron outer shell.

Blaze King Ashford 20.2 Specifications

Is the Ashford 20.2 Right for You?

The Blaze King Ashford 20.2 Wood Stove is a strong choice if you want premium cast-iron styling, catalytic combustion, and controlled heat in a smaller package. Its main trade-off compared with the Ashford 30.2 is the smaller firebox and shorter maximum burn time, not a dramatically lower minimum heat output.

Before purchasing, compare the stove’s low output with your home’s heat-loss requirement and confirm that your firewood length and chimney system meet the current installation requirements.
